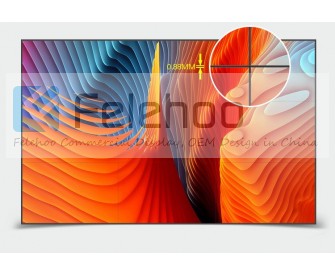

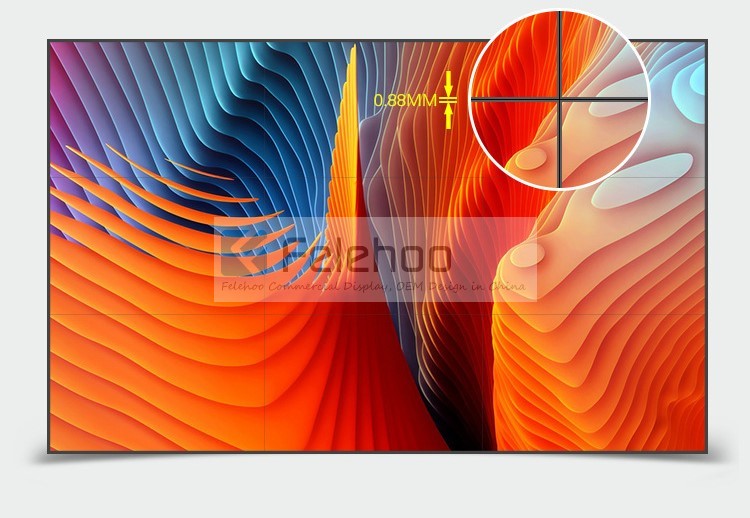

46inch 0.88mm bezelless lcd video wall monitor

  • MODEL: FH-D08D460
  • Price: US $980.00
  • Quantity: Inquiry for the Wholesale price

1,Original BOE LED IPS Panel;

2,The gaps between 2 monitors is 0.88mm;

3,Full hardware structure, no PC/CPU/OS;

4,UHD 4K resolution support;

5,Easy operation, we offer you free software to control video wall;

6,Support RS-232 serial ports remote control;

7,Multiple signal input includes USB,BNC, YPbPr, VGA, HDMI, RS232;

8,Panels splicing freely like 4X4,5X5.....10X10 etc.

  • Quantity:
  • Bookmark and Share
    • Product Details
    • Specifications
    • FAQ

    Felehoo has come up with an amazing product known as video wall which includes various screens joined together with the help of metal brackets and offer you the mesmerising experience. The wall can be the biggest asset to your business as it will enhance the attractive side of your place in the most subtle yet enticing manner. This 4k Video wall includes 46'' DID video wall screen series which is connected from edge to edge with the maximum gap of 0.88mm ultra narrow bezel.

    46inch lcd video wall monitor 1.7mm seamless bezel Samsung panel

    This screen supports LED technology which makes these the perfect solution for a tightly mounted side by the side security surveillance video wall. In this series you won’t find any buttons or lights on the bezel, just RS232 for computer control, 2 video BNC In/out, and many other inputs regarding the screen. The ideal way to have the perfect wall requires multiple monitors installed together in one wall or upgrading the CRTs to LEDs. The LCD screens are easily readable during sunlight as well.

    Felehoo along with a decade of experience under its belt is leading the market as being an expert in control room solutions for broadcasting, telecommunications, public utilities, process control, traffic control, surveillance and command & control applications. The LCD and LED Video wall screens solution offered by the company are optimal for numerous areas such as Emergency Operations Centers, surveillance centres, etc. because of the various distinguished features.

    These screens consume very less amount of power as well as offer the feature of auto pixel shift. The minimum amount of gaps between the LCD screens keep them flexible and enhance the chances of higher resolutions. The LCD wall offered by Felehoo is easy to install and maintain. We are not just selling the product but also offer technical support to all our clients whenever they need. In our quotation for the product, we are only including the items like Original DID LCD or LED Screen Panel, Video wall controller and free control software.

    The installation as well as bracket accessories for the 4k Video wall such as VGA Cables or RJ45 Cables, Power Cables, DP/ VGA/ HDMI Splitter, RS232-RJ45 Connectors and Connection matrix, etc. needs to be arranged by you only, although if you wish we can arrange them for you at the market cost. Our concerned engineer will be more than happy to assist you in installation if you can bear the expenses of their travelling.

    Felehoo LCD&LED Video Wall provide many kinds of solutions with variety of signals. Our LCD Video Wall is easy to install and maintain, with high stability and reliability,Providing cost-effective products and customer-oriented services.we are not just selling the complete set of equipment but also technical support service.

    46inch lcd video wall monitor 1.7mm seamless bezel Samsung panel

    Main Functions:

    1,Integrating multiple signal decoding unit,a liquid crystal drive unit,power supply unit and other parts, can flexible and easily form a large screen display system.

    2,All hardware made, professional mosaic chip design, no CPU, operating system and virus infection risk, security and stability.

    3,Multi-bus parallel processing,speed and powerful.

    4,Integrated with multi-channel video sources : HDMI,DVI,VGA,DP(Display port),USB,NETWORK

    5,Integrated with media codecs,support for H.264,MPEG-2,RMVB,MKV,VC-1 and other encoding formats, support up to 1080P/2K/4K resolution video.

    6,Embedded 3D video high color separation circuit unit, 3D digital noise reduction processing unit and the progressive normalization frame rate conversion circuit unit.

    7,Support edge compensation, reflecting the overall effect.

    8,Can supply the underlying communication protocol,helping user to construct large-screen systems with the third-party or self-preparation software engineering flexibly.

    9,Embedded smart upgrade firmware system.

    10,Designed for high load and long time display applications,support running 24 hours a day continuously.

    Panel Specification

    Model No

    FH-D08D460

    Panel Size

    46" BOE LED IPS LCD Panel

    (Each monitor bezel 0.44mm)

    Aspect Ratio

    16 : 9

    Active Display Area

    1018(W) x 572(H)

    Backlight

    WLCD

    Max Resolution Support

    1920 x 1080 @120Hz 3840 x 2160 @30Hz

    Color

    16.7M

    Brightness(nits)

    500 nits

    Contrast

    4000:1

    Visual Angle (H/V)

    178°/178°

    Response Time

    <8ms

    Life(hrs)

    >50,000(hrs)

    Video Wall Controller(Built-in each screen)

    1

    Input

    1920 x 1080 @120H,

    3840 x 2160 @30Hz

    DVI

    1

    HDMI 2.0

    1

    USB

    1

    VGA

    1

    DP(Display Port)

    1

    DP Output

    1

    Control signal input and loop out

    RS232(RJ45-8)

    Split Screen

    Support Picture in Picture(PIP/POP)

    Video System

    Color System

    PAL/NTSC/SECAM

    HDTV Mode

    480P, 576P, 720P,1080P,2K,UHD 4K

    OSD Display(Menu Language)

    English (Optional)

    Power

    Power supply

    AC 100V ~ 240V, 50/60Hz

    Maximum Power Consumption

    <220W

    Standby Power Consumption

    <3W

    Temperature

    Working Temperature

    32° F ~ 122° F (0° C ~ 50° C)

    Storage Temperature

    -4° F ~ 140° F (-20° C ~ 60° C)

    Working Humidity

    5%~95%RH

    Storage Humidity

    20%~80%RH

    Installation System

    Installation

    With wall bracket for each single unit monitor

    Gross Weight

    40kg /Unit

    Dimension

    1018.9X573.5X118mm

    Accessories

    Split LCD Unit

    Yes

    Bracket

    Yes (wall bracket for each single unit monitor)

    Power cable

    Yes

    Signal cable

    Yes

    Remote controller

    Yes

    Video wall controller

    Yes(Built-in each screen)

    Splicing software

    Yes

    Splitter/Matrix/Processor

    Yes/Optional

    lcd Video Wall System installation brackets mode

    Besides wall mounted installation mode, we also offer the following complete set cabinet, if you need the cabinet instead of wall mounting installation, you can inquire our salesman about the cost of metal cabinet.

    As for Video Wall System, we offer you 3 solution for reference, you can pick up right solution based on your requirements.

    1) Display one whole content on the LCD video wall units for single input signal by using video splitter.

    2) Display different contents on the LCD video wall units for multiple input signals by using matrix.

    3) Display different complicated contents on the LCD video wall system for multiple input signals with various signals by using processor.

    Felehoo lcd Video Wall System supply customrized design network connection diagram

    1.Q:What is LED/LCD Video Wall System?

    A: LED/LCD Video Wall is integrating multiple signal decoding unit,a liquid crystal drive unit,power supply unit and other parts, can flexible and easily form a large screen display system.which widely used in many fields, like : stadium, exhibition, advertisement playing, and television station, stock market, traffic center and so on.


    2,Q:How can you guarantee the quality of this Products?

    A: Felehoo factory have over 12 years produce experience.All of the products are professional, high quality, artistic design and competitive price. Felehoo people always attach great importance to

    quality controlling from the very beginning to the very end. We focus on every detail We also offer professional technology and after-sale services.


    3.Q:Why is your price some time a little more expensive than others?

    A:Yep, Felehoo use 100% Original A+ Grade TFT Screen and chips ,good material. Ensure that it more stability, and check the products attentively.If you still tell me that just need the cheapest price and don't care any quality. Ok, tell us.But then we are not for the poor quality of responsible.


    4.Q:Everybody say it's good quality, so how to prove, how can I trust one and who can I trust?

    A:We are never hope to do just one business,we are prefer to a long-term cooperation.I know you also don't like change different suppliers,you are looking for the honest supplier. Maybe I can't promise you that is the cheapest price in global, but i can tell you we try our best to offer you the best price to make you always WIN customers and electronic field!So we are very glad to if you are sincerely want to buy. Felehoo factory have the confidence to do your fixed suppliers.

    So let me know your target price and which product you need for so that I can recommend the appropriate type for you, and I will do my utmost to offer you a perfect order. thank your trust!


    5,Q: what is HS code for LED/LCD Video Wall ?

    A: 8528591090 for LED/LCD Video Wall .


    6, Q: what brand of screen are you using?

    A: we are using Samsung,LG screen.


    7,Q: How long you can finish the production?

    A: For the sample order, we can finish the production within 7 working days, If we have it in stock, we can send you the sample within 3 days after received your payment.


    8, Q: What is your after-sale service?

    A: One year warranty from the shipping date.We offer 100% guarantee on our product.


    9,Q: Which size of LED/LCD Video Wall do you have?

    A: At present, The screen size range of LED/LCD Video Wall includes: 40"/42"/46/47"/49"/55"/60".

    As for LED/LCD Video Wall solution, we can supply : 1x2,1x3,2x3,3x3,4x2,4x3,4x4,4x5,5x5,

    6x5.6x4,6x3,6x2,7x2,7x3,7x4,7x5,7x6,7x7,8x2,8x3,8x4,8x5,8x6,8x7,8x8,9x2,9x3,9x4,9x5,9x6.


    10,Q : Are you a manufacturer or trading company?

    A: We are a manufacturer who has been specializing in producing LCD display for years.


    11, Q : What is your MOQ?

    A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.


    13, Q : Do you have your own enclosure factory?

    A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope

    to provide you with best screen and shape,so OEM is also welcome.


    14.Q : what payment can you accept ?

    A : T/T, western union ,Paypal for payment terms.

    For Bulk orders : 30% deposit in advance to start the production,balance payment clear before the delivery.

    15, Q : what about the package and transport ?

    A: This question is very important. For sample, i advise that you pick up DHL or Airline as transport mode, for Bulk order, we can send you the goods by sea shipping.

    As for outer package, if you need sample, we advise that we send you the sample with Flight case. If your demand is not much, we can pack your goods with wooden case. Please notice this point, the cost of flight case and wooden case is not included in price, you need pay extra package cost, this cost based on your quantity, felehoo salesman can check the package cost for you based on your quantity. If you order a large quantity, such as 100pcs or 500pcs, we can pack the goods with carton box. Regarding so large quantity, the goods can be filled in a container. As you known, Container is enough, so you no need pay any extra package cost when you buy a large quantity.
