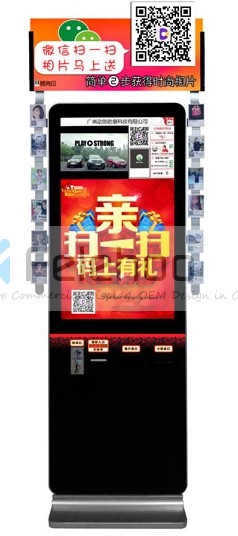

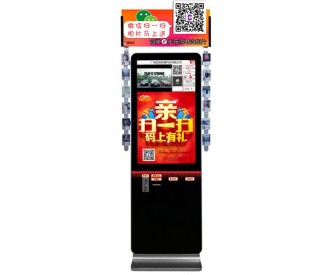

43inch touch screen self service photo kiosk for taking photo

  • MODEL: FH-KT430P
  • Price: US $880.00
  • Quantity: Inquiry for the Wholesale price

1, Slim and solid metal case design.

2, Optional ticket printer/coin acceptor.

3, Built-in WIFI and Mini PC;

4, Installation and Maintenance friendly.

5, One Stop Solution for taking pictures.

  • Quantity:
    • Bookmark and Share
    • Product Details
    • Specifications
    • FAQ

    Main features:

    1. Beautiful figure: designed to delicate &artistic,streamlined shape, graceful and modernized, friendly interface, car surface treatment workmanship, color/size/shape optional;

    2. Easy maintenance : Each function module is independent, easy to assemble and disassemble;

    3. High extendibility: Function module design and flexible configuration enables our kiosk compatible for most of the IT accessories on the market;

    4. Good safety: Antirust, antiabrasion baked varnish technology, overall anti-vandalism and steel construction all over;

    5. High operation reliability: Special heat output system may maintain same temperature of the internal environment and the outside to provide more stable working condition for the computer and avoid malfunction;

    6. Easy to use: Ready to use by plugging the power supply, no bother for assembling yourself.

    Monitor size: 43"

    Touch screen: Sound acoustic wave/Infrared;

    Single point life: over 50million times, Max resolution 4096*4096

    LCD: Industrial LCD display, Samsung/LG brands; Max resolution: 1920*1080

    Enclosure:

    * Material: Cold rolled plate, baked varnish surface;

    * Color: Optional;

    * Sound system: Internal magnetic Stereo amplifier, 2.2W amplifier board, 10W loudspeaker*2pcs;

    * Heat output: Internal 12V fans to achieve better ventilation effect;

    * Power supply: Input voltage AC 100-240V 50/60Hz; Inrush current 3A;

    * Power: < 200W;

    * Interface: RJ45 net port; External USB interface(optional);

    * Switch: No need to open the kiosk panel, you may open or shut down the computer via the external reset button

    Optional parts:

    You can choose to add some accessories on the kiosk if you need as follows,

    1.Bluetooth Connection

    2.Ticket Printer: Epson 80MM thermal printer with auto cutter

    3.Card Reader: IC card reader/magnetic card reader/RFID card reader etc

    4.Metal Keybaord with trackball,stainless steel,waterproof,encrypted

    5.Cash Acceptor: accepts multi-currency cash/note

    6.Coin Acceptor: accepts multi-currency coin

    7.HD Web camera

    8.Barcode Scanner: 1D,2D

    9.Wireless WIFI, Bluetooth etc

    Working environment: Temperature: 0~45°C; relative Humidity: 30%-90%

    Application:

    1)Business Organizations:

    Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

    2)Financial Organizations:

    Banks, negotiable securities, funds, insurance companies, pawnshops;

    3)Non-profit Organizations:

    Telecommunications, post offices, hospital, schools;

    4)Public Places:

    Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

    5)Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

    6)Entertainments:

    Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

    All the kiosk have optional configuration, we have some below for reference.

    Tell us if you have better suggestion.

    The advantage of our company:

    1.We have our own factory to make sure the quality and the supply ability

    2.We have our own R&D team to meet any of your requirements

    3.10 years' experience in this field

    4.Perfect and professional after-sales service

    1,the specification of 19inch TFT LCD Screen Panel

    Screen size 19 inch
    The type of screen LCD
    Display area(mm) 408(W) X 253(H)

    Dot Pitch(mm)

    0.294(H)×0.294(V)

    Max Resolution

    		1920 X 1080
    Number of colors 16.7M (8-bit)
    Brightness 350cd/m2
    Contrast 1000:1
    Viewing angle

    178°/178°/178°/178°

    Lifetime of screen

    50000hrs


    2,the specification of touchscreen Panel:

    Touch Max Resolution

    4096×4096

    Transparency

    		>90%, Up to 100%
    Scanning Speed >50s cans/S
    Response speed <12m
    Touch type Vertical Multiple Dot Touch screen
    Touch precision 0.625mm
    Min Touch object

    <5m

    Touch Intensity Over 60,000,000 Single Point Touch
    Operation System Win 10 (Optional Linux hardware & OS)
    Operating Voltage DC, 5V 5%
    Power Supply Keyboard Serial Interface
    Power <1W (Current < 200mA)
    Communication RS-232 interface Port, USB port
    Vandal-Proof Steel Ball (Diameter 63.5mm 1040g weight ) drop from 1040mm,No break
    Temperature Operating

    -41°c~70°c

    Temperature Storage

    -50°c~85°c

    Altitude

    3000m

    Noise

    None

    Life Time

    >10 Year


    3, The specification of internal PC :

    Mainboard

    Intel HM67-3

    Processor

    Intel ® Core I5-4200M (3M Cache,up to 3.1 GHz)

    Ram

    DDR3/4GB

    Hard Disk

    SSD 256GB

    Power

    Delta industrial PC 380W Power

    Fan

    Server adopt all-copper radiator double ball turbofan 4lines adjusting speed

    Input port

    DVI*1 / VGA*1 /HDMI*1/WIFI network port / Audio*2 / on/off button / power switch / power input / USB *4

    Plug and play

    VESA DDC2B is available

    Pre-installed

    		win 10 OS (Optional)

    Standard accessory

    AC power line

    User Manual

    Warranty card / certification

    6 retaining screws for base

    Anti-theft lock

    Cabinet color/appearance: Black (Optional/customized color:Silver,golden) Cabinet material: SPCC/Aluminum/Customized

    Optional accessory

    Wireless mini keyboard and mouse,Wireless network card

    others

    Network card /keyboard and mouse: USB

    Operating temperature


    Working temperature:0°C-40°C storage temperature:-20°C-60°C/ humidity:20%-80%

    The power dissipation and power

    AC 110-240V 50/60 Hz / Max 150W

    Touchscreen communication connection

    USB

    The connection of video signal input

    DVI/VGA/HDMI

    Speaker

    5Wx2

    External wifi or Bluetooth/3G/4G module

    Optional

    4, The specification of internal ticket printer :(Optional)

    Print

    Printing Method

    Thermal Line

    Printing Speed

    220mm/s

    Resolution

    8 dots/mm, 576 dots/line

    Effective Printing Width

    72mm

    Character

    Character Set

    ASCII, GB18030(Chinese),BIG5

    Print Font

    Codepage, ANK: 12 x24, Chinese: 24 x 24

    Development support Supply Print Demo and SDK development software for Android/Linux/Windows OS

    Character per Line

    42/48

    Paper Spec

    Paper Type

    Thermal paper

    Paper Width

    79.5± 0.5mm

    Paper Roll Diameter

    Max: 80.0mm

    Roll Core Inner Diameter

    13mm(min.)

    Paper Thickness

    0.06~0.08mm

    Paper Supply Method

    Drop-in easy paper loading

    Reliability

    MCBF(MCBF) Mean Cycles Between Failure

    60 million lines

    TPH

    100km

    Barcode

    1D: UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODEBAR,CODE93,CODE128, 2D:PDF417,QR CODE, DATA matrix

    Sensor

    Paper End Sensor

    Auto cutter

    Type

    Guillotine

    Life

    1,000,000 cuts

    Cutting Method

    Partial cut

    Storage Temp

    -20~60°C

    Operating Humidity

    10~80%

    Storage Humidity

    10~90%

    Q1: If i want to buy only 1 sample,could you sell?

    A: Yes,we have some popular models are on sale,we will check which one is in stock,then sell it to you.Very fast delivery.

    Q2: How is your shipping?

    A:As the heavy kiosk we suggest the shipment by air to airport (fast 5-6days)or by sea (slow 25-35days).If you are not convenient with 1 sample,shipment by Express to door is best (expensive than by air freight)

    We offer all kinds of logistics methods in favor of our world wide clients. Shipping from Shenzhen to each corner of the world by sea, airlines to the nearest seaport, or combined sea+land directly to your facility. We also have good relationship with major courier companies DHL, TNT, Fedex, UPS which enables us to deliver our products quickly and safely to your hand.

    Q3: How is your packing?

    Four layer safe packing: bubble foam, PE boards, carton, wooden case
