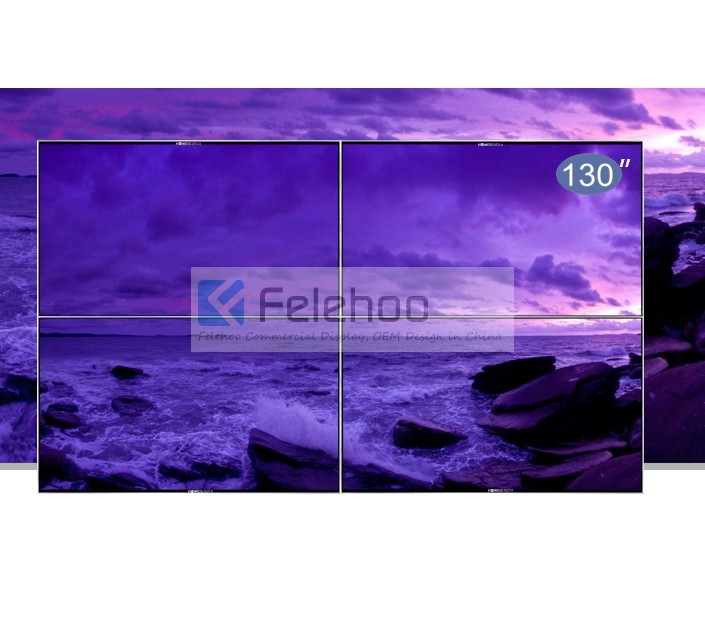

65inch 2x2 LED Narrow Bezel Large format screen LCD Video Wall Display

  • MODEL: FH-D2D650AL
  • Price: US $750.00
  • Quantity: Inquiry for the Wholesale price

1,LG LED IPS Panel, support 24hours continously displaying;

2,The gaps between panels is 7mm;

3,Full hardware structure, no PC/CPU and operation system;

4,Easy installation, only fixed them together by metal bracket ;

5,Easy operation, we offer you free software to control video wall;

6,Support RS-232 serial ports remote control;

7,Multipl signal input includes BNC, YPbPr, VGA, HDMI, RS232;

8,Panels splicing freely like 2X2, 3X3 etc.

  • Quantity:
  • Bookmark and Share
    • Product Details
    • Specifications
    • FAQ
    The 65'' DID video wall screen series features on only 7mm edge to edge ultra narrow bezel with LED technology making these the perfect solution for a tightly mounted side by side security surveillance video wall.The 65'' series is designed with no buttons or lights on the bezel, RS232 for computer control, 2 video BNC In/Out, and many other inputs.Ideal solution requiring multiple monitors to be installed on one wall or upgrading your CRT's to LED's.

    Felehoo is leading the market as being an expert in control room solutions for broadcasting, telecommunications, public utilities, process control, traffic control,surveillance and command&control applications. Felehoo LCD&LED video wall solutions are ideal for Emergency Operations Centers,traffic and surveillance centers and utilities and process control room.Unlike plasma technology, Felehoo LCD&LED video walls require less power consumption and with auto pixel shift built in they are not subject to permanent, irreversible burn-in, unlike LCD's that have gaps/space between each monitor, tiled video walls offer more flexibility, stability and the possibility for a higher resolution.

    Narrow Bezel Large format screen LCD Video Wall Display connection diagram

    Felehoo LCD&LED Video Wall provide many kinds of solutions with variety of signals. Our LCD Video Wall is easy to install and maintain, with high stability and reliability,Providing cost-effective products and customer-oriented services.we are not just selling the complete set of equipment but also technical support service.

    65inch 2x2 LED Narrow Bezel Large format screen LCD Video Wall Display supplier

    In general, our quotation only includes Original DID LCD or LED Screen Panel, Video wall controller, free control software,

    Easy installation bracket and related Accessories(VGA Cables or RJ45 Cables, Power Cables).As for other devices, you need prepare them by yourself, Our quotation not include PC,VGA/HDMI Splitter, RS232-RJ45 Connectors and Connection matrix,Unless you need them from us here, we can also buy them for you from the market. Besides, If you have a large project, need some help from our company. We can also arrange our engineer to go to your country to provide the in-door installation and equipment debugging service if you would like to afford the related expenses of traveling.

    Main Functions:

    1,Integrating multiple signal decoding unit,a liquid crystal drive unit,power supply unit and other parts, can flexible and easily form a large screen display system.

    2,All hardware made, professional mosaic chip design, no CPU, operating system and virus infection risk, security and stability.

    3,Multi-bus parallel processing,speed and powerful.

    4,Integrated with multi-channel video sources : HDMI,DVI,VGA,CVBS,USB,NETWORK(rj45),HDMI,DVI,VGA,Y/Pb/Pr,CVBS,USB.

    5,Integrated with media codecs,support for H.264,MPEG-2,RMVB,MKV,VC-1 and other encoding formats, support up to 1080P resolution video.

    6,Embedded 3D video high color separation circuit unit, 3D digital noise reduction processing unit and the progressive normalization frame rate conversion circuit unit.

    7,Support edge compensation, reflecting the overall effect.

    8,Can supply the underlying communication protocol,helping user to construct large-screen systems with the third-party or self-preparation software engineering flexibly.

    9,Embedded smart upgrade firmware system.

    10,Designed for high load and long time display applications,support running 24 hours a day continuously.

    Panel Specification
    Model No FH-D2D650AL
    Panel Size 65" LG LED IPS DID LCD Screen(bezel 7mm)
    Aspect Ratio 16 : 9
    Active Display Area 1429(W) x 804(H)
    Back light LED
    Max Resolution Support 1920x1080(Max)
    Color 16.7M
    Brightness(nits) 500nits
    Contrast 3000:1
    Visual Angle (H/V) 178°/178°
    Response Time <6ms
    Life(hrs) >50,000(hrs)
    Video Wall Controller(Built-in each screen)
    VGA input 1
    DVI input 1
    HDMI Input 1
    Composite Video input 2(BNC x 2)
    Y,Pb,Pr/Y,Cb,Cr input 1(BNC X 3)
    Composite Video Output 2(BNC X 2)
    S-video 2(BNC X 2)
    Control signal input and loop out RS232(RJ45-8)
    Split Screen Support Picture in Picture(PIP/POP)
    Video System
    Color System PAL/NTSC/SECAM
    HDTV Mode 480P, 576P, 720P, 1080P (2K,4K is optional)
    OSD Display(Menu Language) Chinese/English
    Power supply AC 100V ~ 240V, 50/60Hz
    Maximum Power Consumption <160W
    Standby Power Consumption <3W
    Working Temperature 32° F ~ 122° F (0° C ~ 50° C)
    Storage Temperature -4° F ~ 140° F (-20° C ~ 60° C)
    Working Humidity 5%~95%
    Storage Humidity 20%~80%
    Installation System
    Installation With wall bracket for each single unit lcd
    Gross Weight 60kg
    Dimension 1525X900X102mm
    Split LCD Unit Yes
    Bracket Yes(wall bracket for each single unit lcd)
    Power cable Yes
    Remote controller Yes
    Video wall controller Yes(Built-in each screen)
    Splicing software Yes

    Besides wall mounted installation mode, we also offer the following complete set cabinet, if you need the cabinet instead of wall mounting installation, you can inquire our salesman about the cost of metal cabinet.

    As for Video Wall System, we offer you 3 solution for reference, you can pick up right solution based on your requirements.

    1) Display one whole content on the LCD video wall units for single input signal by using video splitter.

    2) Display different contents on the LCD video wall units for multiple input signals by using matrix.
